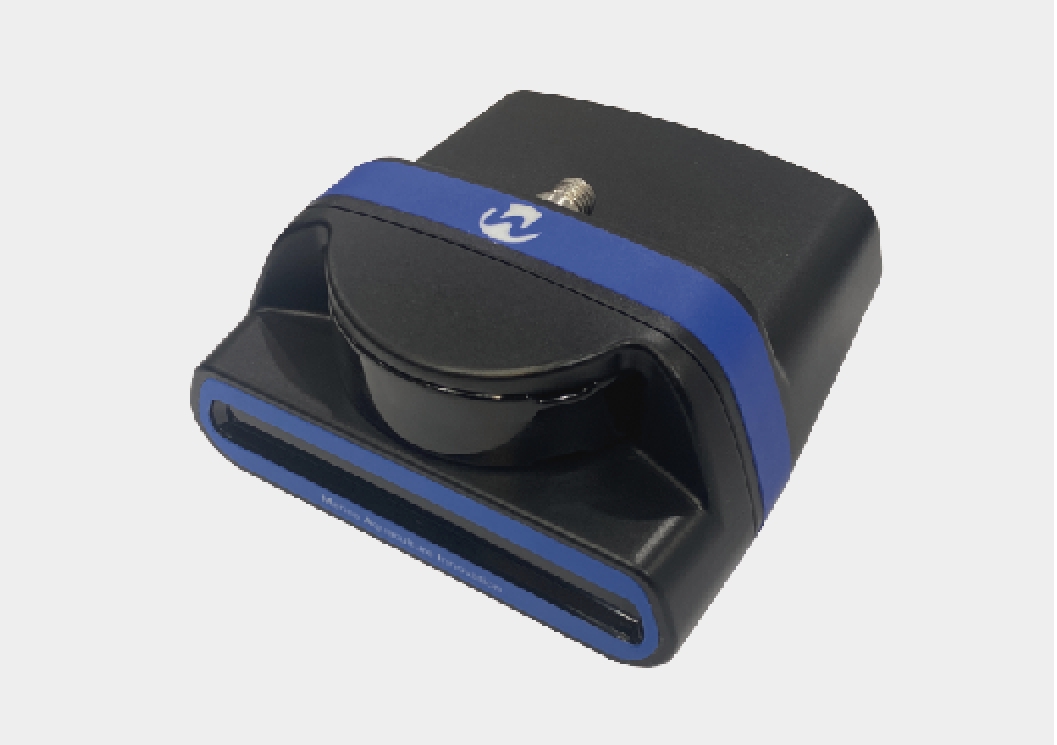

TS1200d图像声呐

The Oculus M1200d is a high-resolution, dual-frequency imaging sonar suited to short range navigation and detailed inspections work where image quality is critical. At 1.2MHz with a 30m range capability and 130° horizontal aperture, the sonar is ideal for target detection and identification. When switching to high frequency, 2.1MHz with a 10m range capability and 60° horizontal aperture, the sonar can be used for focused target inspection.

Description

OCULUS M1200D

High-resolution, dual-frequency imaging sonar ideal for short range navigation and detailed inspections work

• Frequencies: 1.2MHz / 2.1MHz

• Range: 0.1m to 40m / 10m

• Range Resolution: 2.5mm

• Update Rate: 40Hz

• Apertures: 130° / 60° H, 20° / 12° V

• Beams: 512, 0.25° / 0.16° separation

• Angular Resolution: 0.6° / 0.4°

RANGE OVERVIEW

The Oculus M-series multibeam sonars are a new generation of imaging sonar, designed for use across a wide variety of underwater applications. With both single and dual-frequency models available and offering unparalleled image quality in a compact, rugged form factor and depth rated to 500m. Their small form factor makes them ideally suited for deployment onto micro sized platforms, while their rugged construction also makes them an excellent choice for larger work-class vehicles and subsea infrastructure.

Multibeam Acoustic Specs
