TS3000D高清晰图像声呐

The Oculus M-series multibeam sonars are a new generation of imaging sonar, designed for use across a wide variety of underwater applications. Offering the highest resolution in the M-series range, the Oculus M3000d operates at both 1.2MHz and 3.1 MHz (with a 130° and 40° field of view respectively) making it ideal for specialised inspection tasks where image quality is critical.

Description

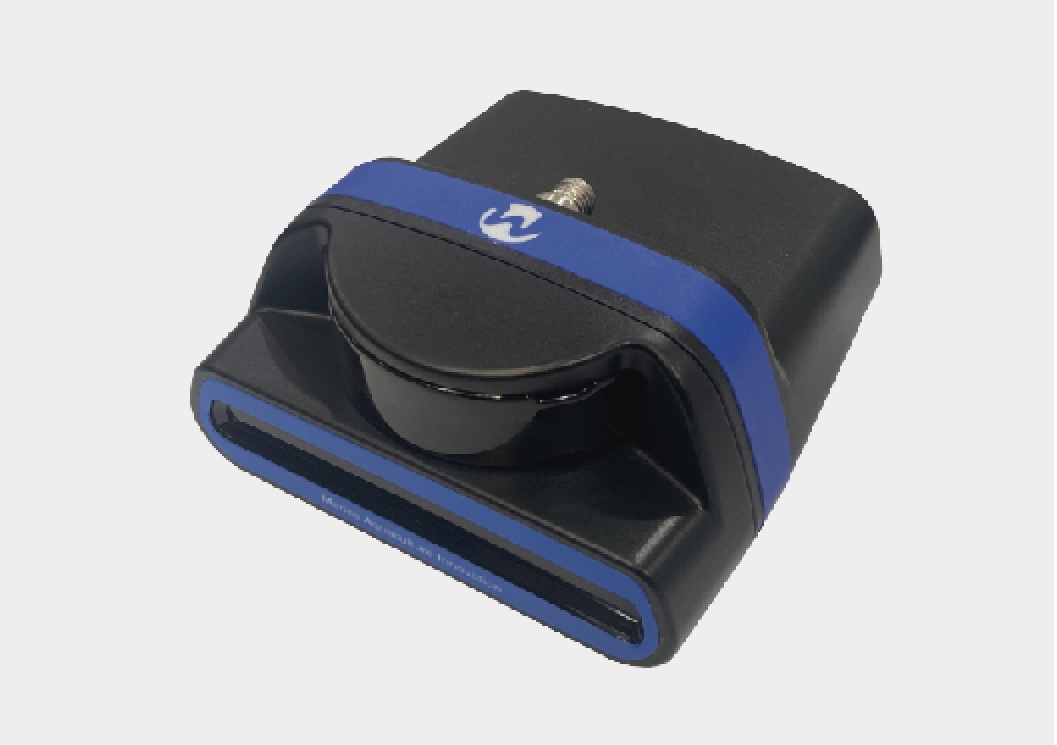

OCULUS M3000D

Ultra-high resolution, dual-frequency imaging sonar offering unrivalled image quality for specialist inspection tasks

• Frequencies: 1.2MHz / 3MHz

• Range: 0.1m to 30m / 5m

• Range Resolution: 4mm / 2.5mm

• Update Rate: 40Hz

• Apertures: 130° / 40° H, 20° / 20° V

• Beams: 512, 0.25° / 0.16° separation

• Angular Resolution: 0.6° / 0.25°

RANGE OVERVIEW

The Oculus M-series multibeam sonars are a new generation of imaging sonar, designed for use across a wide variety of underwater applications. With both single and dual-frequency models available and offering unparalleled image quality in a compact, rugged form factor and depth rated to 500m. Their small form factor makes them ideally suited for deployment onto micro sized platforms, while their rugged construction also makes them an excellent choice for larger work-class vehicles and subsea infrastructure.

M3000D Multibeam Acoustic Specs
