TS750D远视野避碰声呐

The benchmark in multibeam imaging sonars. The Oculus M-Series offers single and dual-frequency models, unparalleled image quality in a compact, rugged form factor and depth rated to 500m. Designed for use on anything from small inspection-class ROVs to larger work-class platforms. The Oculus M750d is a general-purpose, dual-frequency imaging sonar ideal for navigation, situational awareness, and inspection tasks. The M750d offers a 120m range capability at 750kHz, and 40m at 1.2MHz. The 130°

Description

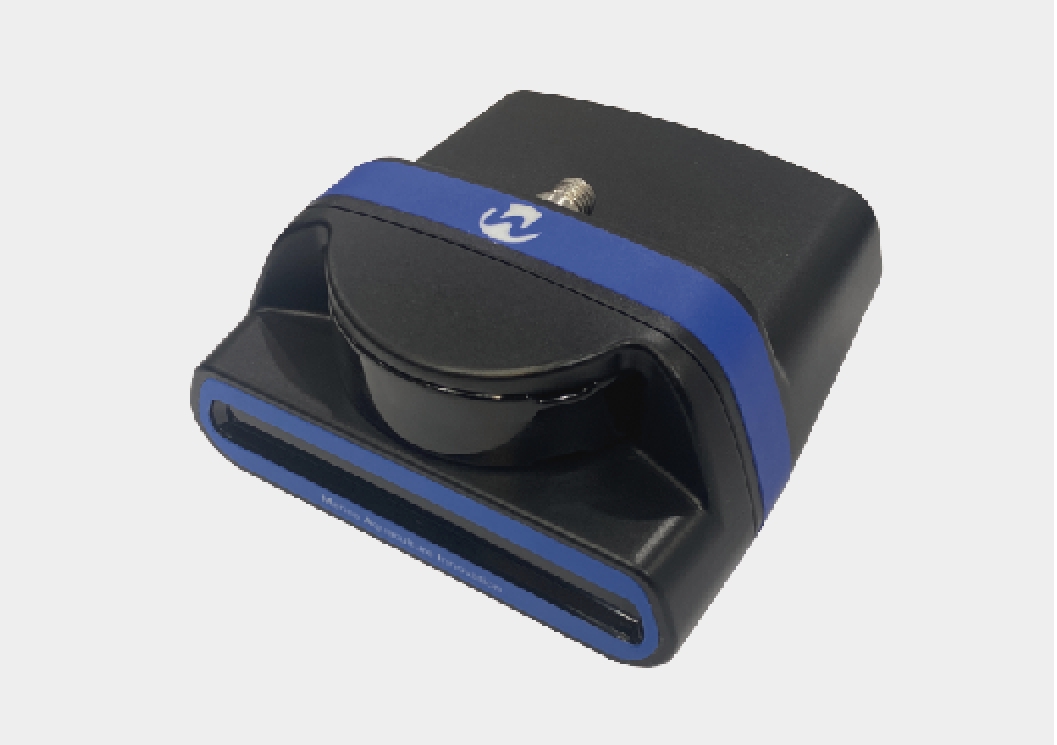

OCULUS M750D

The Oculus M750d is a general-purpose dual-frequency sonar offering up to 120-metre range capability at 750kHz, and 40 metres at 1.2MHz, with 130° horizontal aperture. With a weight in water of less than 400g, power consumption starting from 10 Watts (up to 35W) and options for 100-BaseT or 2-wire DSL high-speed communications, the M750d is ideal for mounting on small platforms, work-class ROV's or sub-sea infrastructure to provide navigation and high-resolution imagery for near field target identification.

General purpose, dual-frequency imaging sonar ideal for navigation, inspection and situational awareness

• Frequencies: 750kHz / 1.2MHz

• Range: 0.1m to 120m / 40m

• Range Resolution: 4mm / 2.5mm

• Update Rate: 40Hz

• Apertures: 130° / 70° H, 20° / 12° V

• Beams: 512, 0.25° / 0.16° separation

• Angular Resolution: 1° / 0.6°

RANGE OVERVIEW

The Oculus M-series multibeam sonars are a new generation of imaging sonar, designed for use across a wide variety of underwater applications. With both single and dual-frequency models available and offering unparalleled image quality in a compact, rugged form factor and depth rated to 500m. Their small form factor makes them ideally suited for deployment onto micro sized platforms, while their rugged construction also makes them an excellent choice for larger work-class vehicles and subsea infrastructure.

M750D Multibeam Acoustic Specs
